SPECIFICATIONS
Do-it-yourself Equipment: ELECTRICAL
AC Spenning: 6V/60V/600V/750V
Display type: Digital display
DC Spenning: 6V/60V/600V/1000V
AC Current: 6000mA/10A
Resistance measurement range: 600/6k/60k/600k/6M/60M
Certification: CE
DC Current: 6000mA/10A
Measurement capacitance range: 60nF/60nF/6uF/60uF/600uF/6mF/60mF/100mF
Operating mode: Manual range and automatic range
Model Number: ANENG 683 Digital Multimeter
Measurement inductance range: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/99.99kHz
Dimensions: 150*75*24
Operating temperature: 0 - 40℃
Choice: yes
A NENG 683 Premium Touch Smart Multimeter
Overview:
This instrument is a 3 5/6 digital multimeter that offers stable functionality and reliable quality. The device has an LCD display with an analog bar display. Users will appreciate the advantage of continuous power operation without the need to adjust the selector for function selection. The input of AC/DC voltage or resistance is automatically detected and measured.

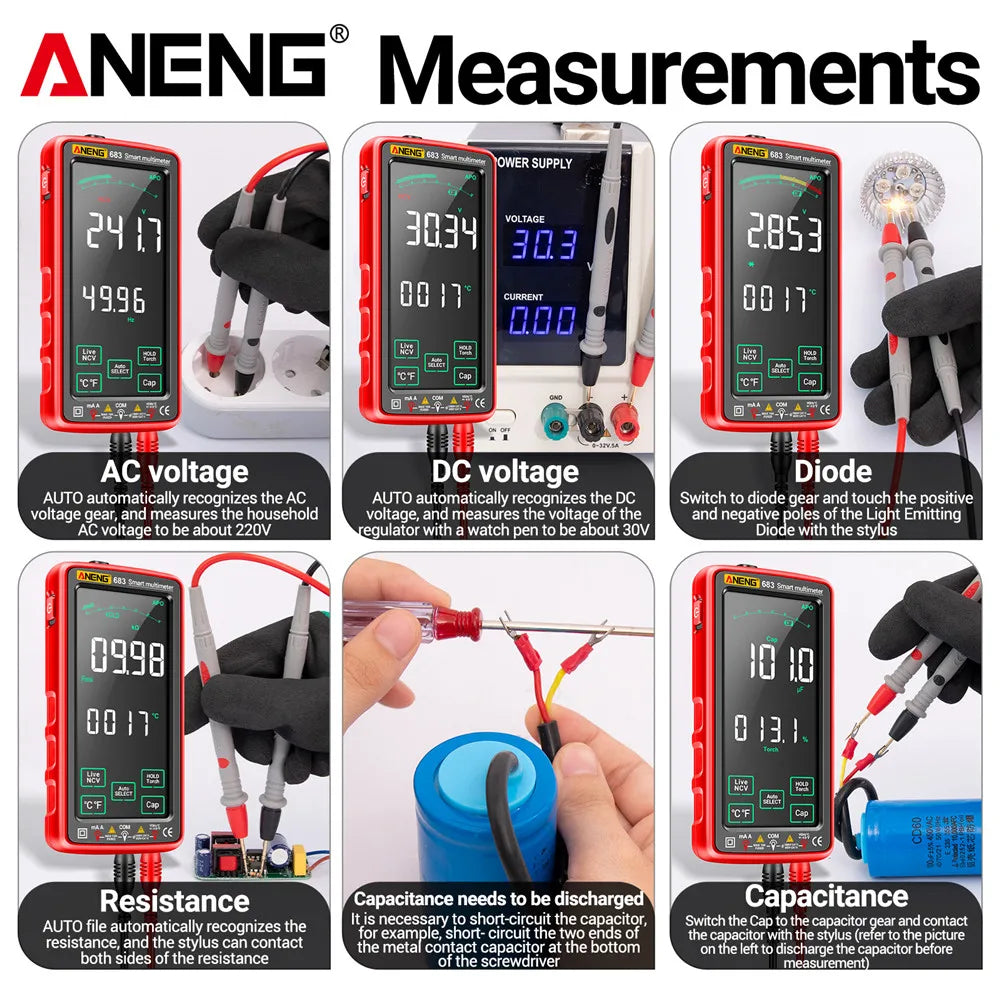

It can measure DC voltage, AC voltage sine RMS, DC current, AC current sine RMS, resistance, capacitance, live-line indication, duty cycle, diode on/off testing, device symbols, data hold and has an automatic power saving function.
The multimeter is powered by high-capacity rechargeable batteries that ensure full functionality and accurate measurements. This is an excellent tool for laboratory work, factory use, radio projects and home services.
Highlights:
Manual range and auto range
Comprehensive overload protection
Maximum permissible voltage between measuring technique and ground: 1000V DC or 750V AC
Fuse Protection: uA/mA
Display: 6000 Counts LCD display with analog bar
Battery type: 3.7V/2800mA rechargeable battery

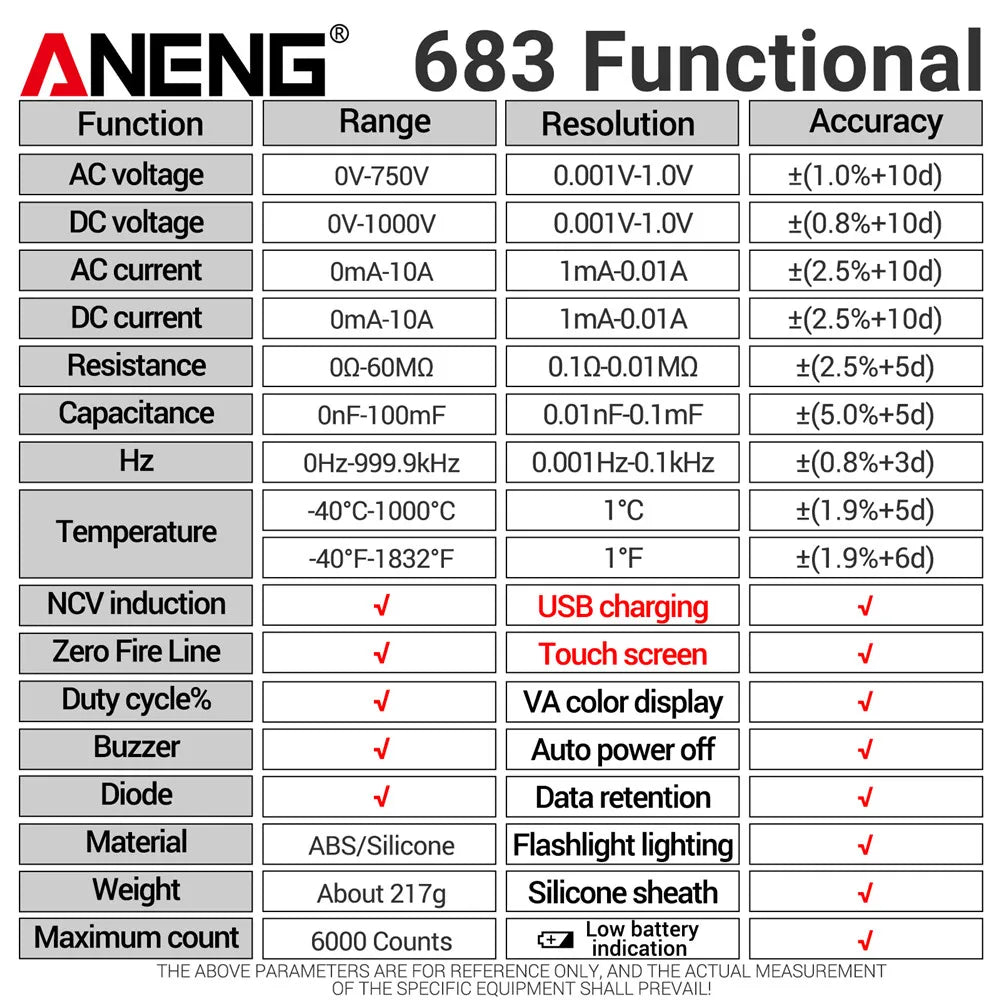

Specifications:
DC Voltage:
|
Measurement range |
Resolution |
Accuracy |
|
6V/60V |
0.001V/0.01V |
+-(0.5% of readings + 3 digits) |
|
600V/1000V |
0.1V/1.0V |
+-(0.8% of readings + 10 digits) |
AC Voltage:
|
Measurement range |
Resolution |
Accuracy |
|
6V/60V |
0.001V/0.01V |
+-(0.8% of readings + 3 digits) |
|
600V/750V |
0.1V/1.0V |
+-(1.0% of readings + 10 digits) |
AC and AC Power
|
Measurement range |
Resolution |
Accuracy |
|
6000mA |
1mA |
+-(1.0% of readings + 5 digits) |
|
10A |
0.01A |
+-(2.5% of readings + 10 digits) |
Resistance
|
Measurement range |
Resolution |
Accuracy |
|
600Ω/6kΩ/60kΩ/600kΩ |
0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ |
+-(0.8% of readings + 3 digits) |
|
6MΩ |
0.001MΩ |
+-(1.2% of readings + 3 digits) |
|
60MΩ |
0.01MΩ |
+-(2.5% of measurements + 5 digits) |
Capacitance
|
Measurement range |
Resolution |
Accuracy |
|
60nF/60nF/6uF/60uF/600uF/6mF |
0.01nF/0.1nF/0.001uF/0.01uF/0.1uF |
+-(4.0% of readings + 20 digits) |
|
60mF |
0.01mF |
+-(5.0% of readings + 5 digits) |
|
100mF |
0.1mF |
for reference |
Frequency
|
Measurement range |
Resolution |
Accuracy |
|
9.999Hz/99.99Hz/999.9Hz |
0.001Hz/0.01Hz/0.1Hz |
+-(0.8% of readings + 3 digits) |
|
9.999kHz/99.99kHz/999.9kHz |
0.001kHz/0.01kHz/0.1kHz |
+-(0.8% of readings + 3 digits) |
Temperature
|
Measurement range |
Resolution |
Accuracy |
|
-40℃-300℃ |
+-(1.0%+4d) |
1℃ |
|
301℃-1000℃ |
+-(1.9%+5d) |
1℃ |
|
-40 °F -600 °F |
+-(1.2%+6d) |
1°F |
|
601 °F -1832 °F |
+-(1.9%+6d) |
1°F |
|
Diode Test |
And |
Circuit on/off Test |
And |
|
Data Hold |
And |
Automatic power off |
And |
|
Light |
And |

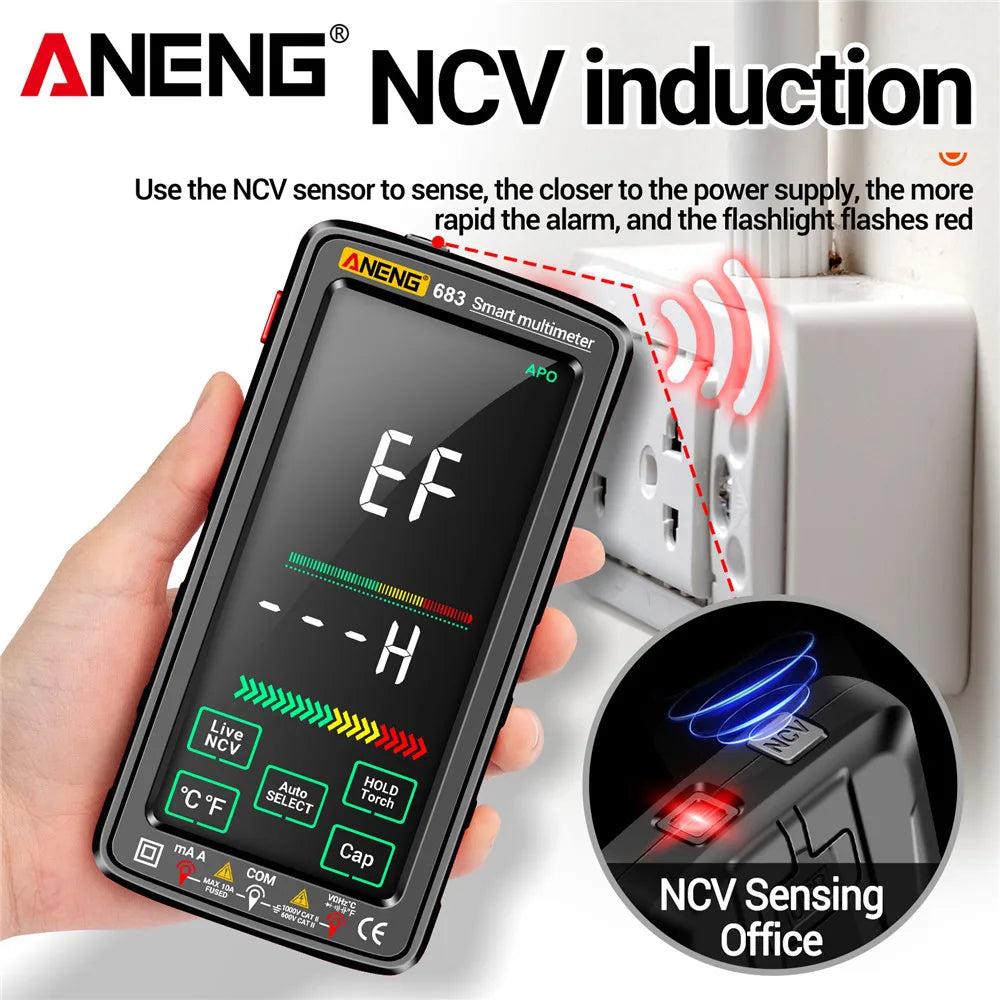

NCV Test |
And |
|
Summer |
And |

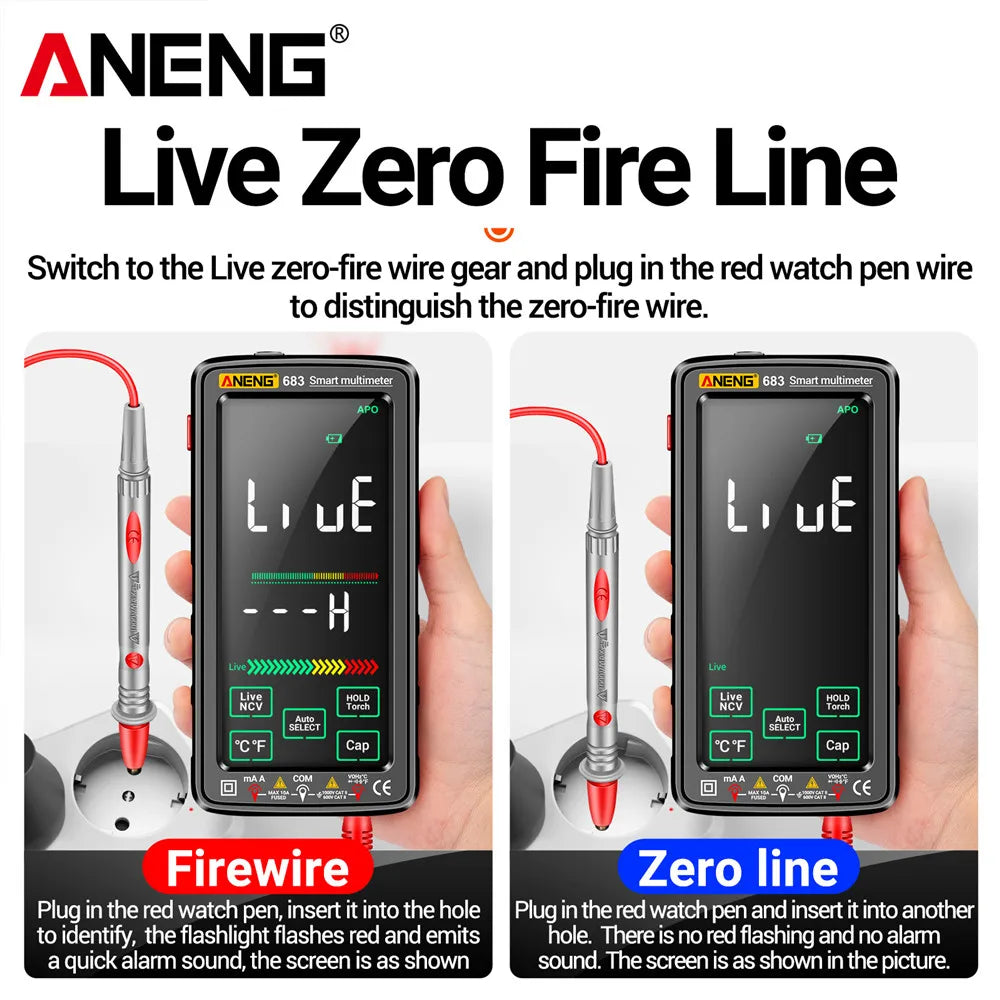

Lightning Line Test |
And |
