Features
1. The cable testing function simplifies the assessment of chaotic and extensive network setups.
2. Comes with diagnostic functions for cable arrangement, line voltage, short-circuit evaluations, and additional functionalities.
3. Volume adjustment function to enhance audio levels in noisy environments when the speaker is difficult to hear.
4. Illumination capability, the receiver is equipped with a bright LED that is useful in dimly lit areas.
5. A crucial testing tool for telecommunication and cabling system experts, as well as for personnel involved in network maintenance.
Characteristics
This product functions as a specialized inspection tool for network cables, offering functionalities such as cable tracing, confirmation of cable sequences, and detection of cabling faults. Its features include:

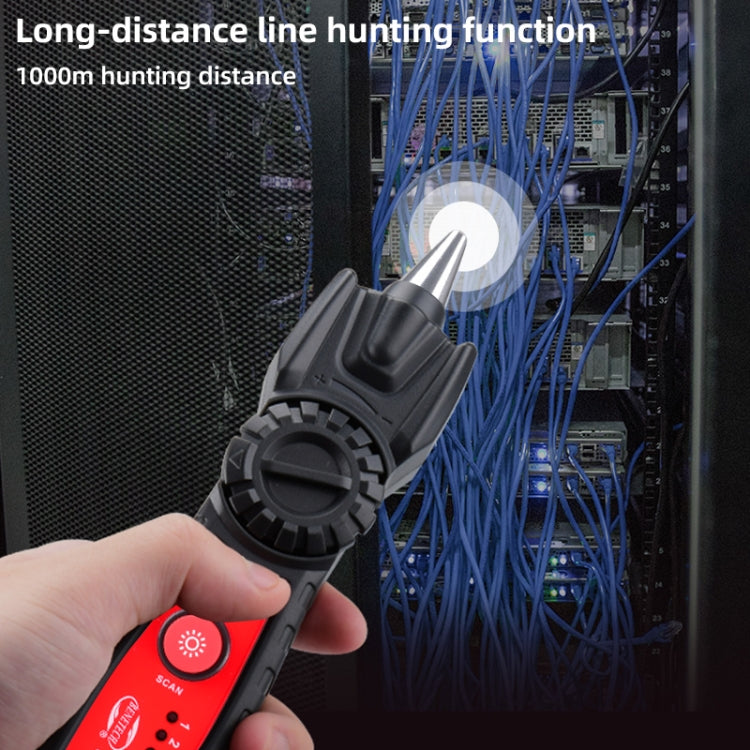

1. Long-distance cable tracing.
2. Confirmation of internet cable sequence.

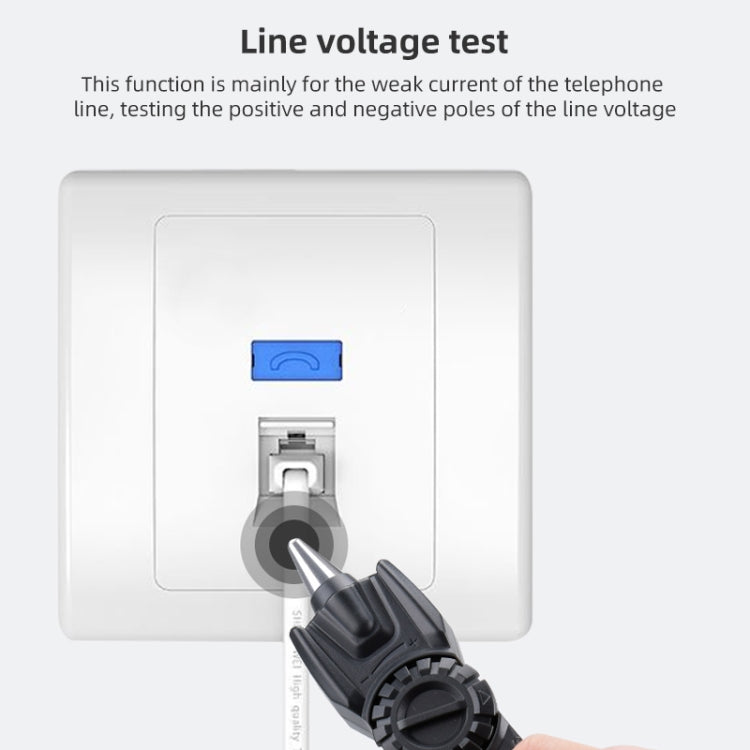

3. Monitoring of line voltage levels.
4. Polarity testing for line voltage.
5. Short-circuit evaluation for cables.
6. Low battery indicator alert.
7. Sensitivity/volume adjustment during tracing.
8. Headphone output option.
9. Built-in flashlight.
Technical Specifications
1. Material: ABS
2. Signal transmission range: Over 1 km
3. Display: LED
4. Power requirements: Transmitter: 3 x 1,5 V AAA alkaline batteries (not included), Receiver: 1 x 6F22 9V alkaline battery (not included)
5. Operating temperature: -10 to 40 degrees C (14 to 104 degrees F)
6. Relative humidity: 10-95% RH
7. Storage temperature: -10 to 40 degrees C (14 to 104 degrees F)
8. Dimensions: Transmitter 63 x 134 x 31mm???Receiver???40 x 200 x 32mm
